[Cisco]4000 Series Router Boost Performance License 적용

by 네트워크 엔지니어 환영 2021. 8. 4.
반응형
'Network 기록하기'는 글쓴이가 실무 경험을 통해 알게 된 지식을 기록하는 공간으로 다른 카테고리의 글에 비해 다소 설명이 불친절하거나 잘못된 정보가 있을 수 있습니다. 양해 부탁드립니다.

코로나로 인한 재택근무로 SSL VPN 사용이 늘면서 고객사의 트래픽 처리량이 크게 증가하였고 그로 인해 고객사의 내부 사용자 및 SSL VPN 사용자의 업무망 & 인터넷 접속 속도가 체감이 될 정도로 느려졌습니다. 그리하여 고객사에 연결된 ISP의 회선을 증속하여 처리량을 늘렸고 이에 맞춰 ISP에 연결된 라우터의 처리량을 확인했습니다. 그러나 라우터의 라이센스가 'Performance License'인 관계로 400 Mbps가 최대로 처리 가능한 Throughput이었고, 증속된 회선 사용량을 맞추기 위해 'Booster Performance License'를 적용하였습니다. 이 라이센스의 최대 처리량은 2Gbps입니다.

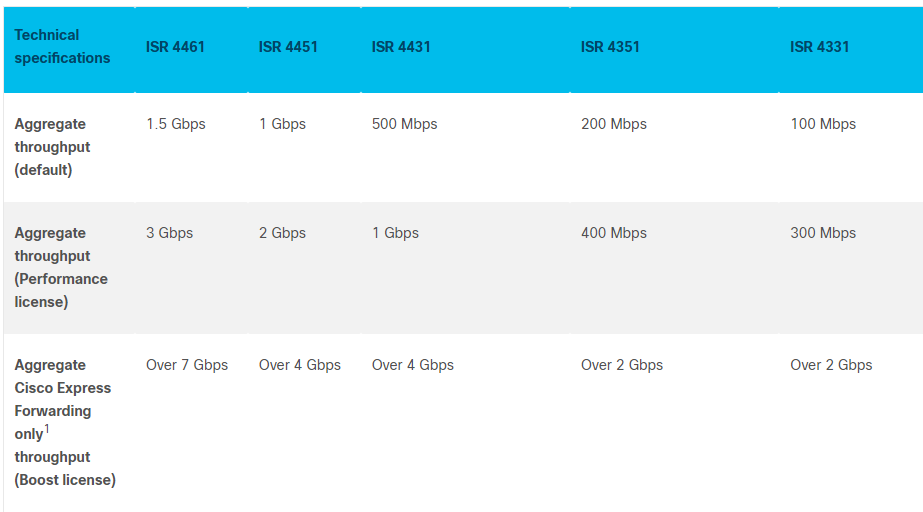

<Cisco 4000 Series의 License 표(출처 : https://www.cisco.com/)>



적용 과정

먼저 라이센스를 라우터에 인스톨합니다.

Device#license install bootflash:FDO203520HU_201804090203446350.lic
(예시 라이센스)

그러면 아래와 같은 로그가 뜨게 되는데 '1/1 license were successfully installed'가 나타나야 합니다.

Installing licenses from "bootflash:FDO203520HU_201804090203446350.lic"
Installing...Feature:booster_performance...Successful:Supported
1/1 licenses were successfully installed
0/1 licenses were existing licenses
0/1 licenses were failed to install
(예시 S/N)

이후에 바로 아래와 같은 로그가 뜨게 되는데요. 라이센스가 곧바로 적용되지 않습니다. 리부팅이 필요합니다.

Apr 9 07:40:11.674: %LICENSE-6-INSTALL: Feature booster_performance 1.0 was installed
in this device.
UDI=ISR4331/K9:FDO203520HU; StoreIndex=2:Primary License Storage
(예시 라이센스, 예시 S/N)

이는 메뉴얼에도 다음과 같은 구절로 잘 나와있습니다.

*Throughput boost is configured, it will take effect after reload

리부팅을 하고 나면 아래와 같은 명령어로 라이센스가 적용되었는지 확인할 수 있습니다.

Device#show running-config | include throughput
platform hardware throughput level boost

Device#show platform hardware throughput level
The current throughput level is unthrottled

또한 라이센스 관련 명령어를 통해 확인 가능합니다.

Device#show license all
StoreIndex: 5 Feature: booster_performance
   Version: 1.0 License
   Type: Permanent License
   State: Active, In Use
   License Count: Non-Counted License
   Priority: Medium

추가로 리부팅 후 아래와 같은 로그가 나타났는데 버그로 보이며 아직 Workaround도 없는 듯 합니다.

%HMAN_CPU-3-PAGE_FAULT_HIGH: R0/0: hman: CPU Usage due to Memory Pressure (xx) exceeds threshold (50) on BINOS_FRU_RP
%HMAN_CPU-3-PAGE_FAULT_HIGH: R0/0: hman: CPU Usage due to Memory Pressure (xx) exceeds threshold (50) on BINOS_FRU_FP
%HMAN_CPU-3-PAGE_FAULT_HIGH: R0/0: hman: CPU Usage due to Memory Pressure (xx) exceeds threshold (50) on BINOS_FRU_CC



* Cisco 공식 문서

https://www.cisco.com/c/en/us/td/docs/routers/access/4400/software/configuration/guide/isr4400swcfg/bm_isr_4400_sw_config_guide_chapter_0101.html#concept_bvv_zyx_ndb

https://www.cisco.com/c/en/us/products/collateral/routers/4000-series-integrated-services-routers-isr/data_sheet-c78-732542.html

bug report : https://quickview.cloudapps.cisco.com/quickview/bug/CSCvi29003
